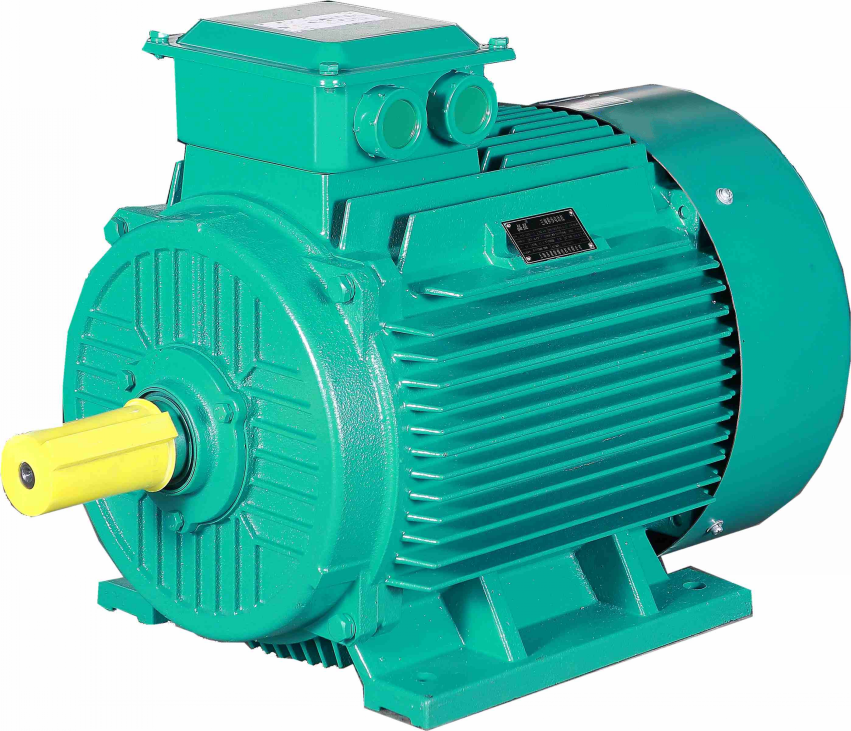

YE3 YE4 YE5 Series Three-phase Asynchronous Motor

Products Name：YE3 series three-phase asynchronous motor

Main parameters:

power range: 0.75-375kW;

seat number: 80-355;

voltage and frequency: 380V/50Hz, can also be customized according to user requirements;

cooling mode: IC411;

protection level: IP55;

insulation level: 155 (F) insulation;

environmental temperature:-15°C to+40°C;

altitude: not more than 1000 meters above sea level.

Products Info：

It meets the IE3 energy efficiency grade of IEC60034-30-1:2014 standard.

Its efficiency improvement design meets the requirements of energy saving and consumption reduction put forward by the state for the production and manufacturing industry.

The installation dimensions of YE3 series motors conform to IEC 60034 standard.

It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high level of protection and insulation.

It can be widely used in fans, pumps, machine tools, compressors and transport machinery to drive all kinds of general machinery and equipment,

and also in petroleum, chemical, iron and steel, mining and other places where the environment is harsh

Products Name：YE4 series three-phase asynchronous motor

Main parameters:

power range: 0.75-400 kW;

seat number: 80-355;

voltage and frequency: 380V/50Hz, can also be customized according to user requirements;

cooling mode: IC411;

protection level: IP55;

insulation level: 155 (F) insulation;

environmental temperature:-15°C to+40°C;

altitude: not more than 1000 meters above sea level.

Products Info：

It meets the IE4 energy efficiency grade of IEC60034-30-1:2014 standard. The installation dimensions of YE4 series motors conform to IEC60034 standard.

It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high level of protection and insulation.

It can be widely used in fans, pumps, machine tools, compressors and transport machinery to drive all kinds of general machinery and equipment,

and also in petroleum, chemical, iron and steel, mining and other places where the environment is harsh

Products Name：YE5 series three-phase asynchronous motor

Main parameters:

Power range: 0.55~375kw;

Base No.:80-355;

The number of poles covers 2,4,6 and 8;

Voltage and frequency: 380V/50Hz, which can also be customized according to user requirements;

Cooling mode: ic411;

Protection grade: IP55;

Insulation grade: 155(f) insulation;

Ambient temperature:-15°C to +40°C;

Altitude: no more than 1000 meters above sea level.

 Products Info：

It meets the IE5 energy efficiency grade of IEC60034-30-1:2014 standard. The installation dimensions of ye5 series motors comply with IEC60034 standard.

It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection grade and insulation grade.

It can be widely used to drive various general mechanical equipment such as fans, water pumps, machine tools, compressors and transportation machinery.

It can also be used in other places with poor environment such as petroleum, chemical industry, iron and steel, mines and so on.
